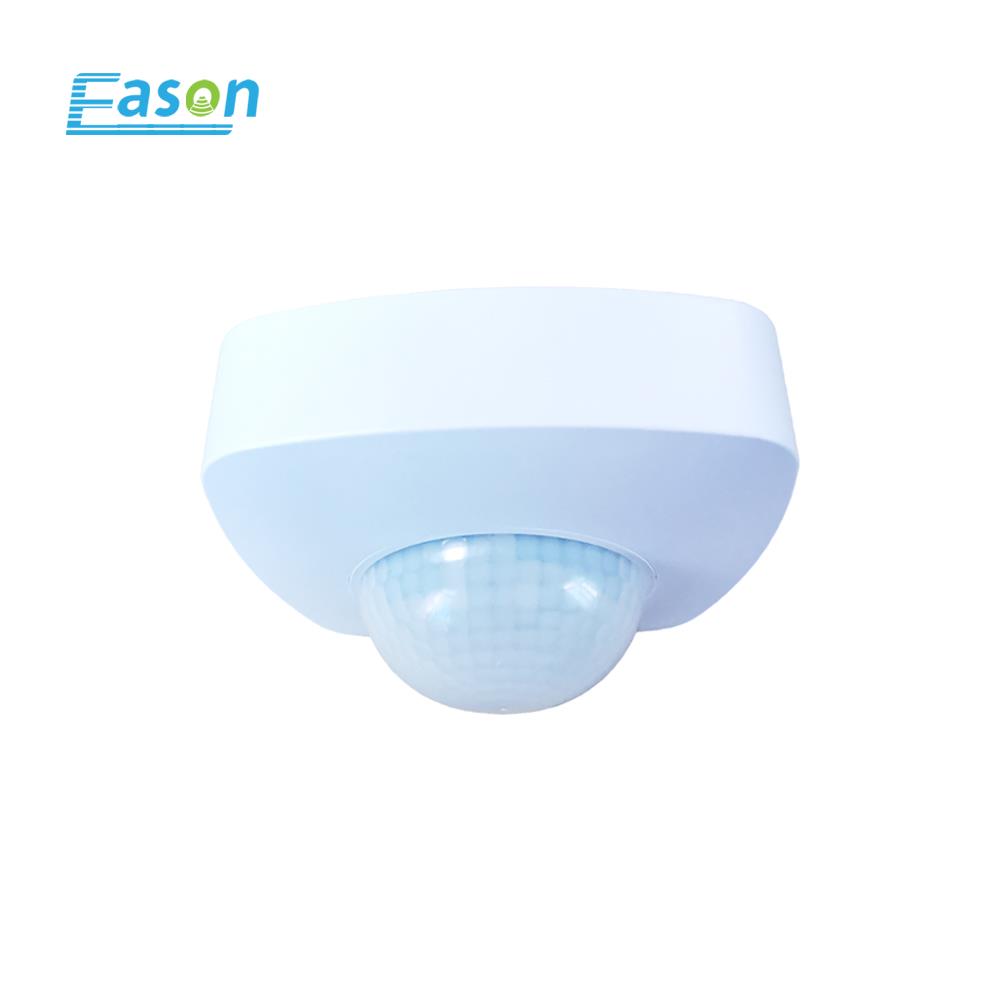

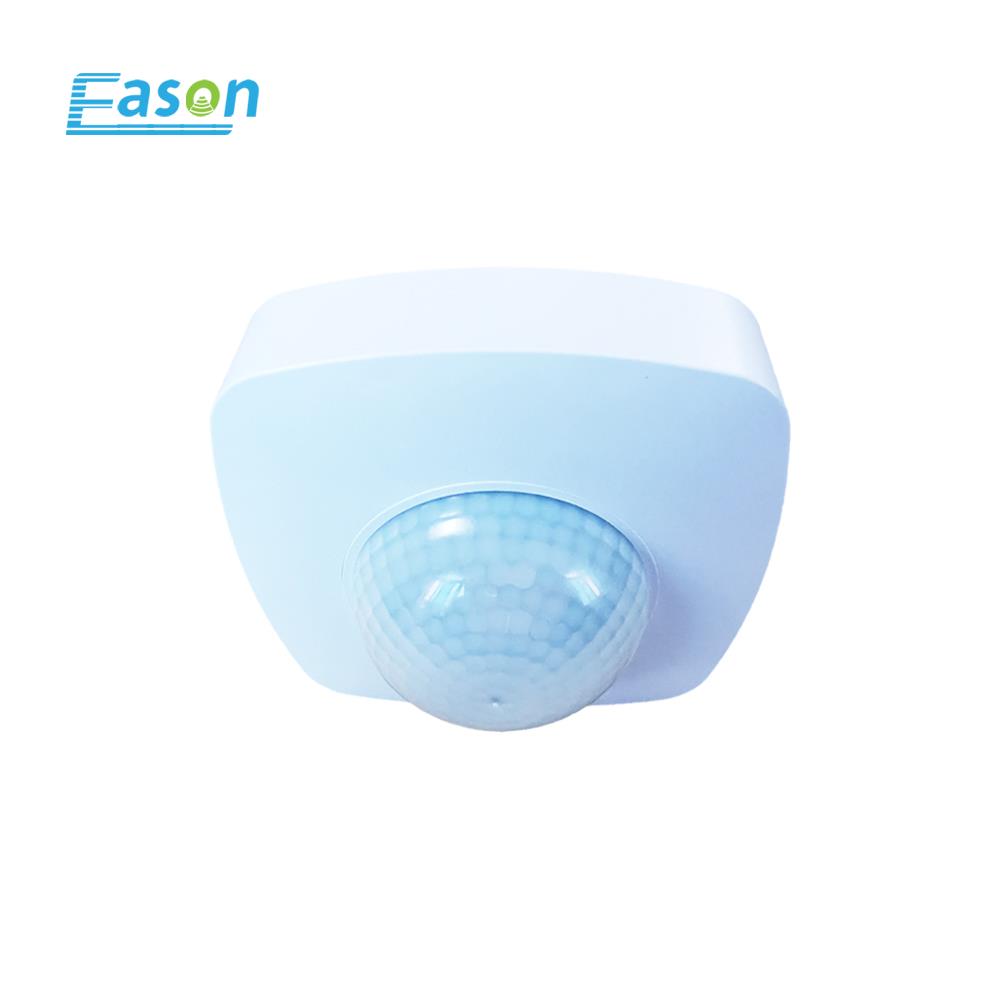

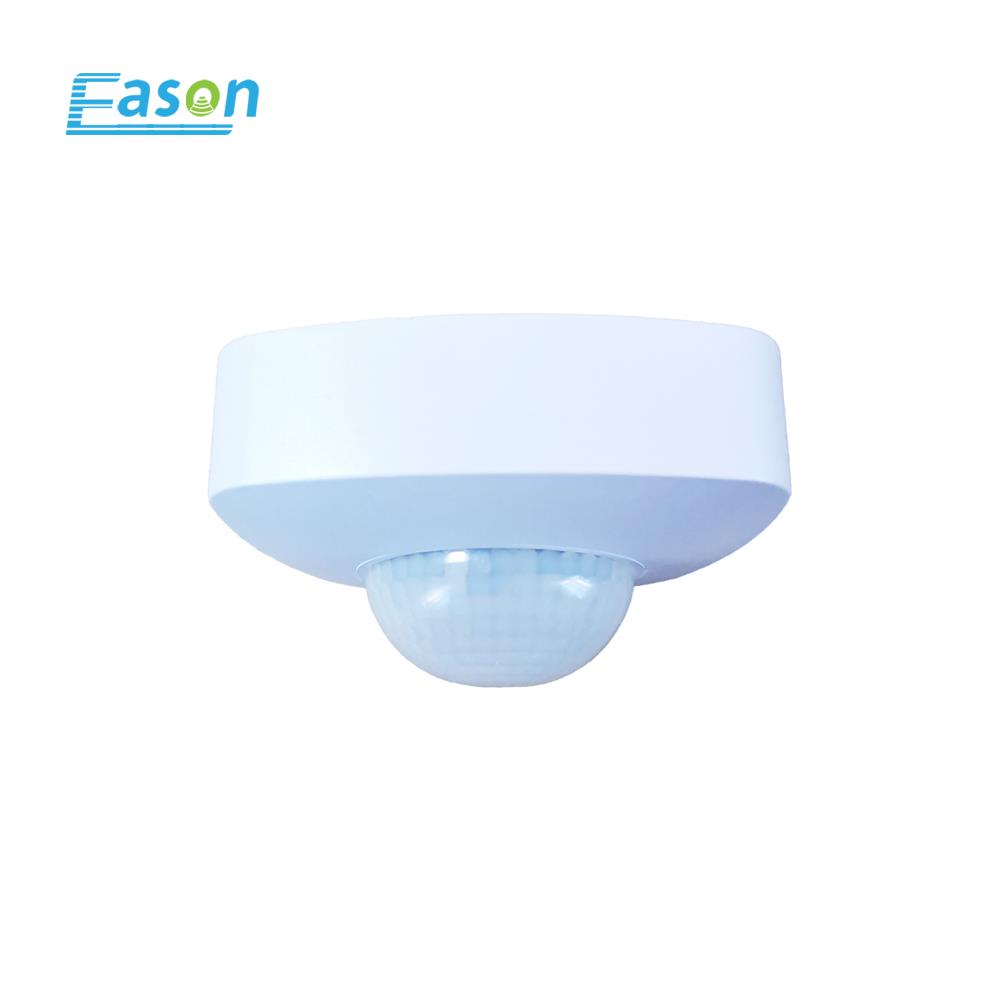

PIR Sensor SY-PIR211
Input Voltage: 220-240V AC 50/60Hz
Output Power: 2000W (incandescent lamp) , 1000W (LED)
Time-Delay: 10s-7min(Adjustable)
Distance: 16m.Max(<24C)
Product Size: Length103*Width103*Height58mm
Detection angle: 360°
Protection Level: IP54
Operating Temperature: -10°C-40℃
Output Power: 2000W (incandescent lamp) , 1000W (LED)
Time-Delay: 10s-7min(Adjustable)
Distance: 16m.Max(<24C)
Product Size: Length103*Width103*Height58mm
Detection angle: 360°
Protection Level: IP54
Operating Temperature: -10°C-40℃
Technical Specification:
Input Voltage: 220-240V AC 50/60Hz
Output Power: 2000W (incandescent lamp) , 1000W (LED)
Time-Delay: 10s-7min(Adjustable)
Distance: 16m.Max(<24C)
Product Size: Length103*Width103*Height58mm
Detection angle: 360°
Protection Level: IP54
Operating Temperature: -10°C-40℃
Application Location: Indoor
Installation Location: Wall/Ceiling
Application Scenarios:
1. Villas & Houses & Apartments & Hotels & Offices
2. Workshop & Staircases & Corridors
3. Public Toilets & Restrooms & Warehouses
4. Garages & Parking Lot
