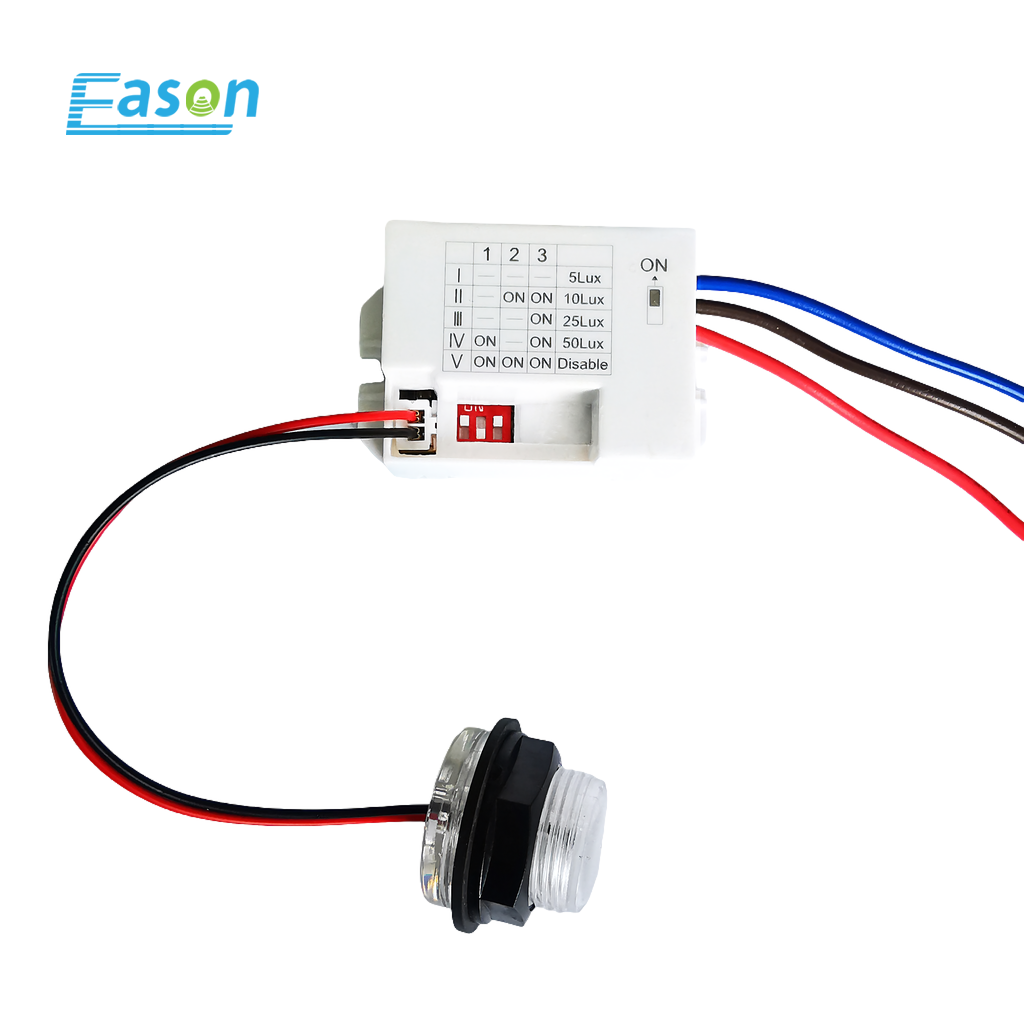

Photocell Sensor SY-DN109
Input Voltage：220-240V AC 50/60Hz
Output Power：Max. 3.6A / 800W
Turn-On Light Levels：<5-50LUX
Turn-Off Light Levels:<65Lux
Time Delay: 3-15 Seconds
Product Size：Length56mm*Wide34mm*High25mm
(Sensor head Diameter20mm, Length23mm)
Protection Level：IP20 / IP65
Output Power：Max. 3.6A / 800W
Turn-On Light Levels：<5-50LUX
Turn-Off Light Levels:<65Lux
Time Delay: 3-15 Seconds
Product Size：Length56mm*Wide34mm*High25mm
(Sensor head Diameter20mm, Length23mm)
Protection Level：IP20 / IP65
Technical Specification:
Input Voltage：220-240V AC 50/60Hz
Output Power：Max. 3.6A / 800W
Turn-On Light Levels：<5-50LUX
Turn-Off Light Levels:<65Lux
Time Delay: 3-15 Seconds
Product Size：Length56mm*Wide34mm*High25mm (Sensor head Diameter20mm, Length23mm)
Protection Level：IP20 / IP65
Operating Temperature：-10℃-50℃
Product net weight / gross weight:41g / 48g
Product Color：White (locknut-white/black)
Application Location: Indoor & Outdoor
Application Scenarios:
1. Streets & Billboards
2. Parks & Gardens
3. Staircases & Corridors
4. Stadiums & Wharfs
