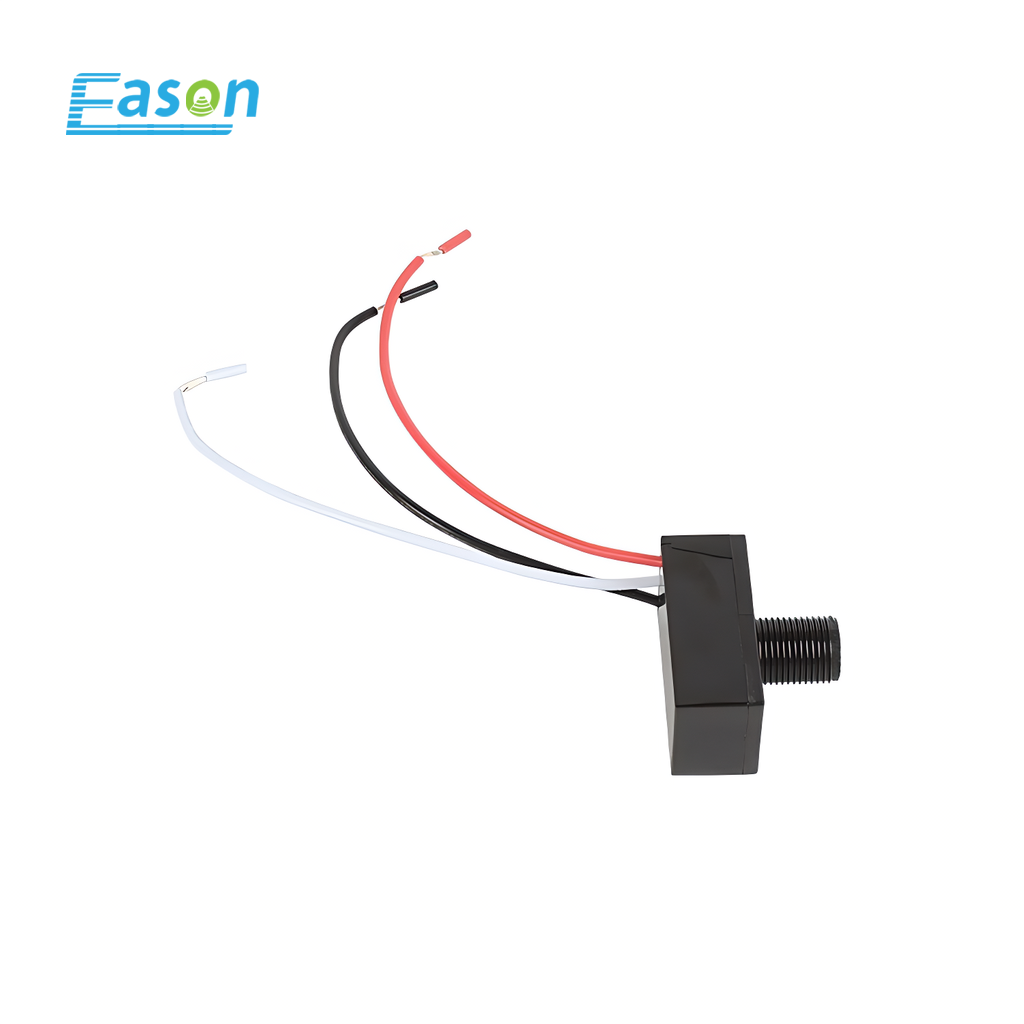

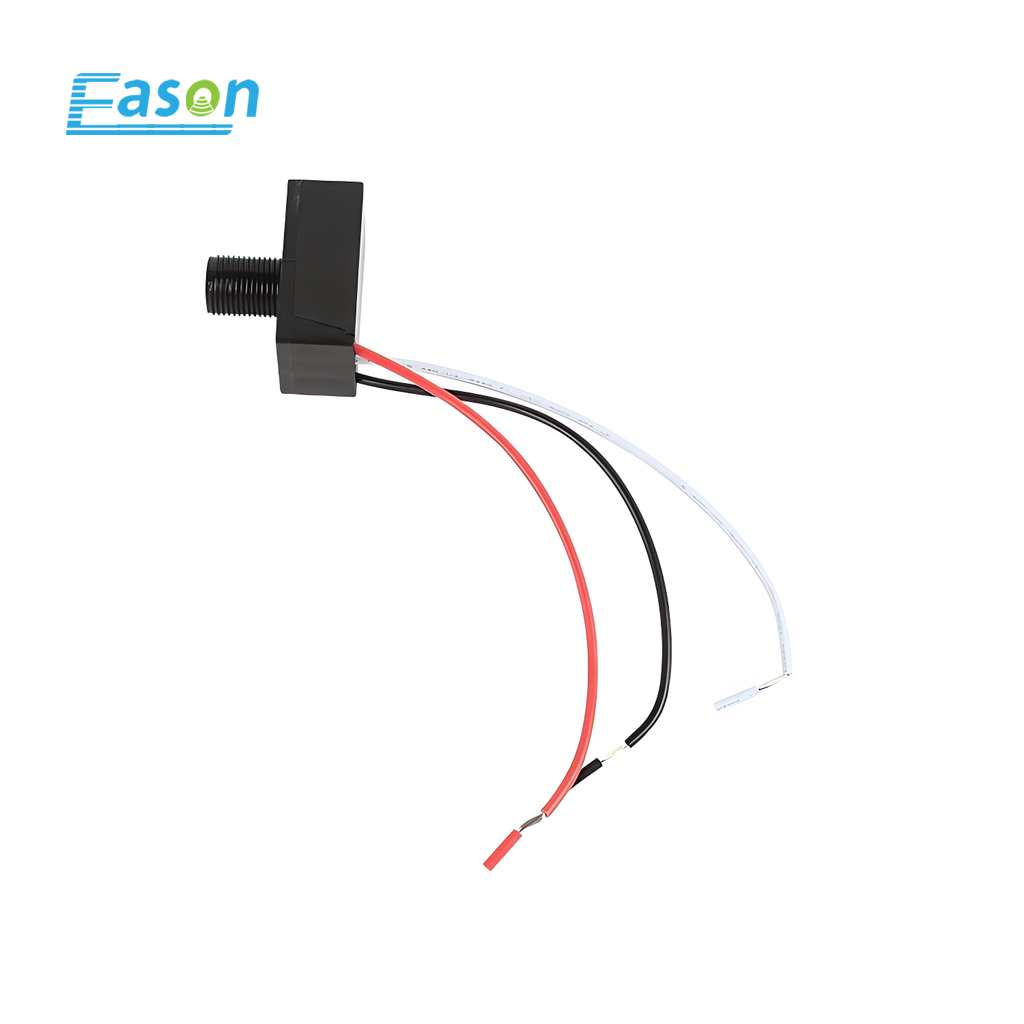

Photocell Sensor SY-LT210A-F

INQUIRY
Input Voltage: 120V/240V/240-277V AC 50/60Hz
Turn-On Light Levels: <10-16LUX
Turn-Off Light Levels:<65Lux
Time Delay: 30-180 Seconds
Product Size:
Length116.5mm*Wide72mm*45mm
(Sensor head diameter16mm, pitch-row83.5mm)
Protection Level：IP66

Technical Specification:

Input Voltage: 120V/240V/240-277V AC 50/60Hz
Turn-On Light Levels: <10-16LUX
Turn-Off Light Levels:<65Lux
Time Delay: 30-180 Seconds

Product Size: Length116.5mm*Wide72mm*45mm (Sensor head diameter16mm, pitch-row83.5mm)

Protection Level：IP66
Operating Temperature: -40℃-70℃
Product net weight / gross weight:68g / 83g
Product Color: Black+Gray



Application Location: Indoor & Outdoor
Application Scenarios:
1. Streets & Billboards
2. Parks & Gardens
3. Staircases & Corridors
4. Stadiums & Wharfs
