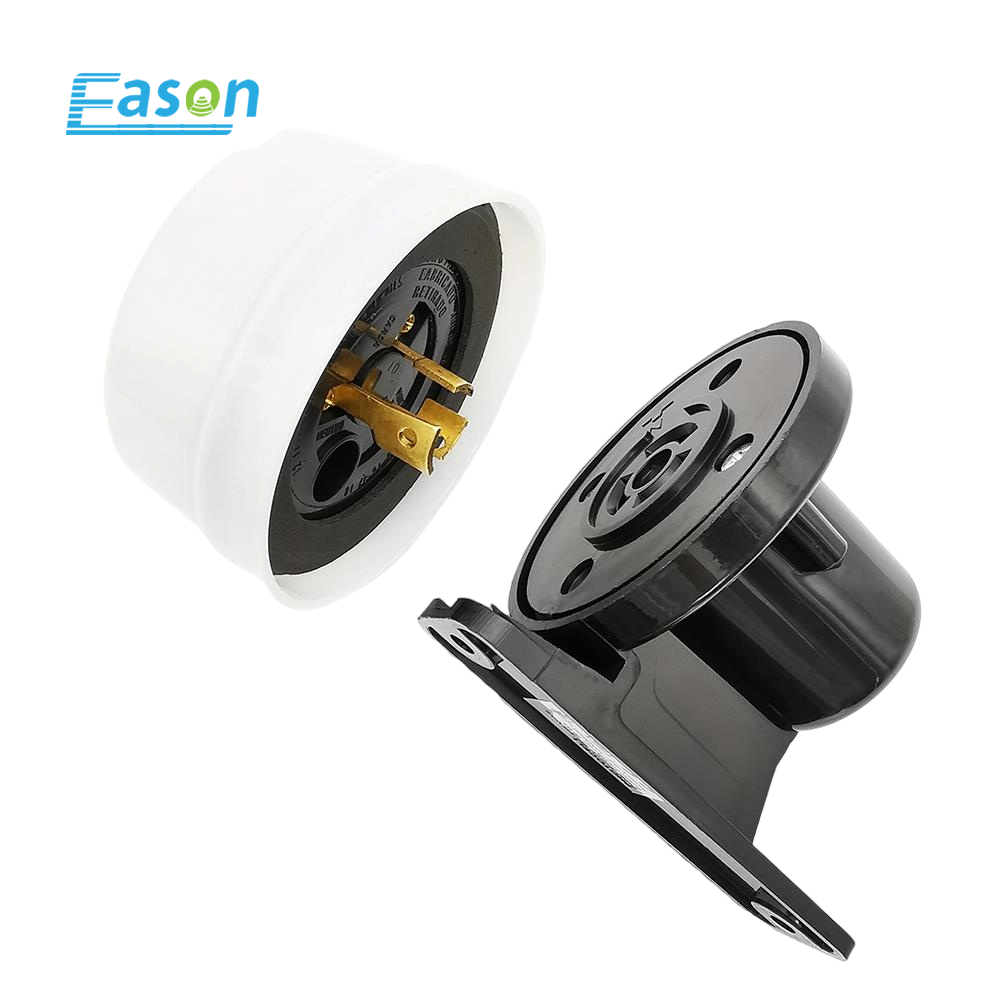

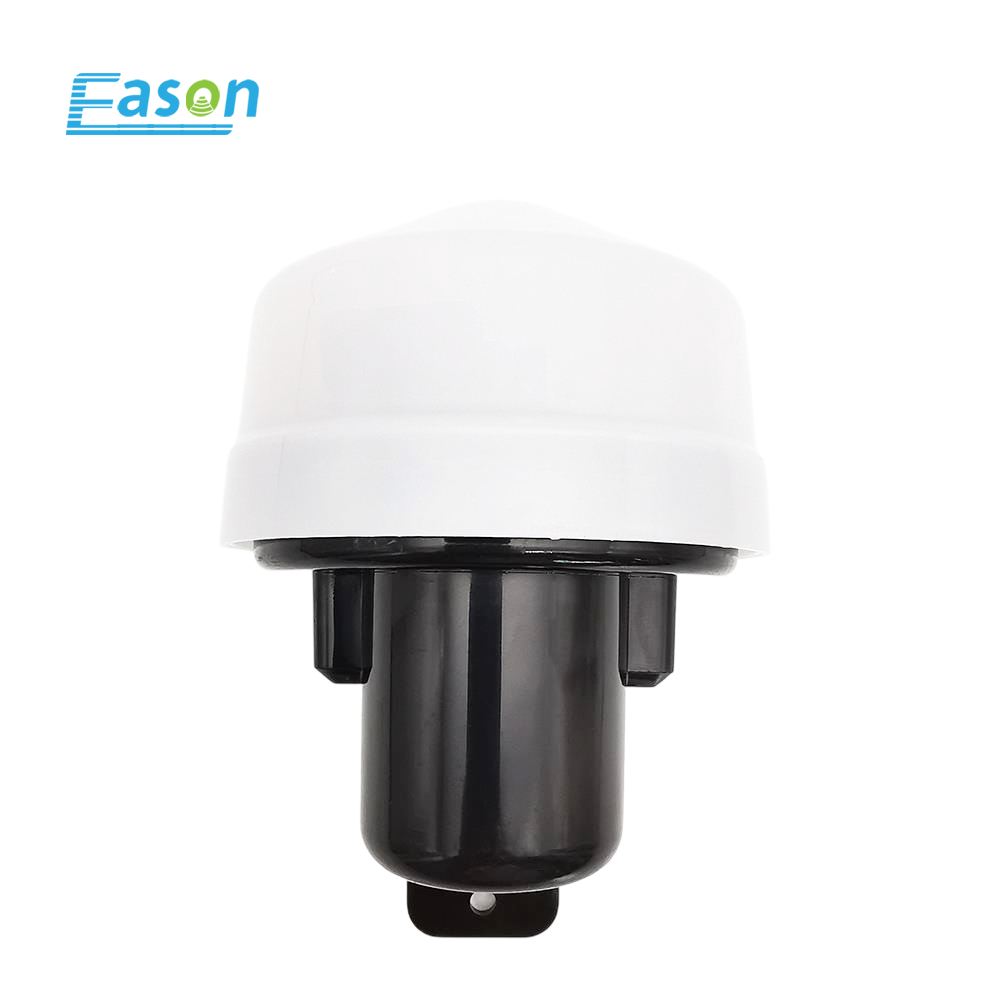

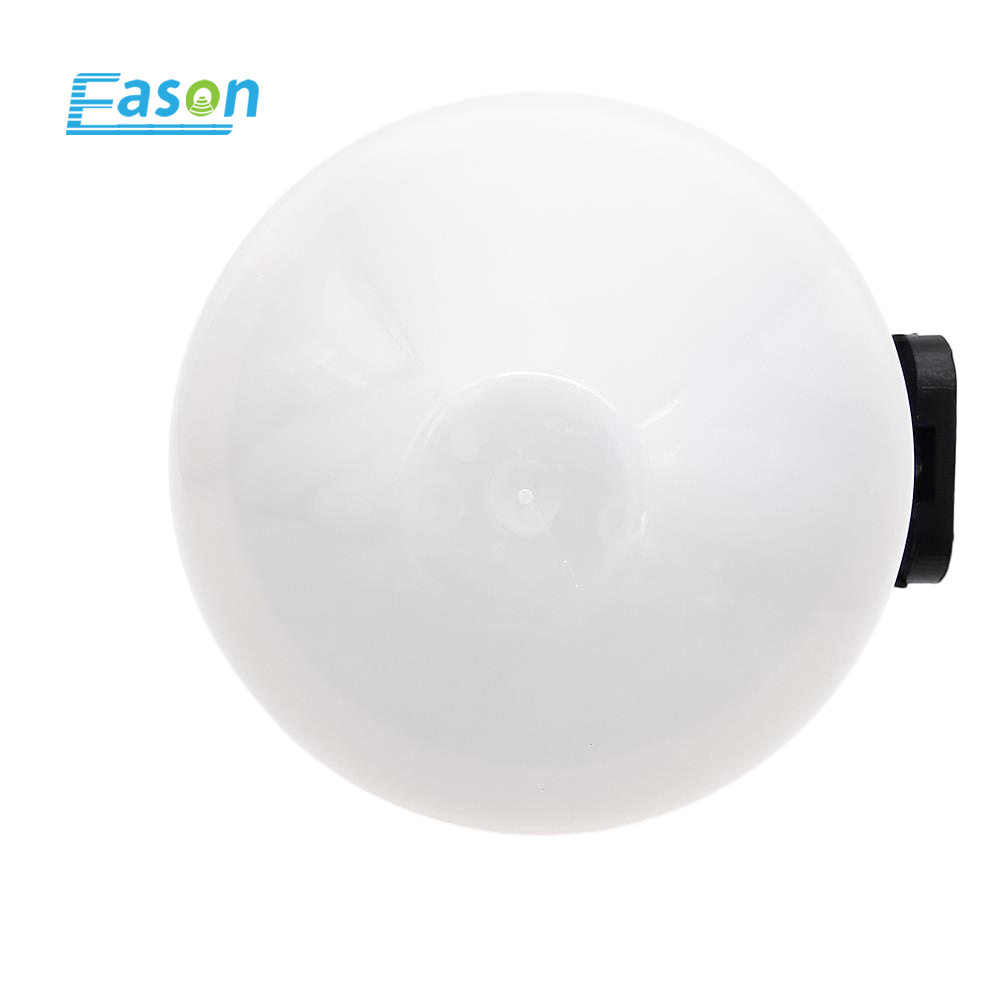

Photocell Sensor SY-DN105

INQUIRY
Input Voltage：220-240V AC 50/60Hz
Output Power：Max. 10A
Light Control：<5-15LUX
Time Delay: 3-15 Seconds
Product Size：Diameter81*Height125mm
Protection Level：IP44 / IP65
Operating Temperature：-10℃-50℃
Product net weight / gross weight: 160g / 175g
Product Color：White+Black

Technical Specification:

Technical Specification:
Input Voltage：220-240V AC 50/60Hz
Output Power：Max. 10A
Light Control：<5-15LUX
Time Delay: 3-15 Seconds
Product Size：Diameter81*Height125mm
Protection Level：IP44 / IP65
Operating Temperature：-10℃-50℃
Product net weight / gross weight: 160g / 175g
Product Color：White+Black

Application Location: Indoor & Outdoor
Installation Location:
1. Pole installation
2.  Wall
3.  Integrated into the light fixture
4.  Junction box



Application Location: Indoor & Outdoor
Application Scenarios:
1. Streets & Billboards
2. Parks & Gardens
3. Staircases & Corridors
4. Stadiums & Wharfs
